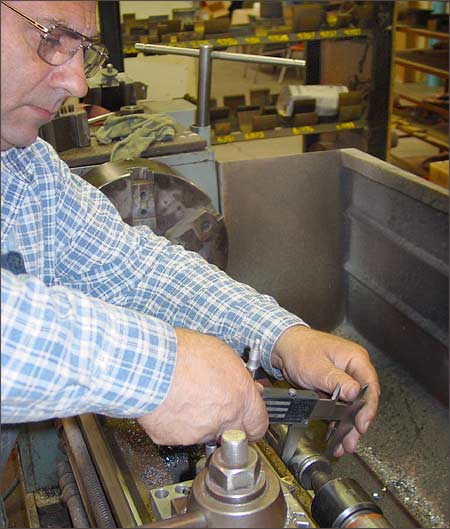

The machinist uses a set of calibrated digital calipers to measure the Outside Diameter (O.D.) of the journal, keyway and groove dimensions. He takes several measurements at different points along the length of the journal and writes these dimensions down on the drawing he has made of the piece. These measurements, along with the Inside Diameter (I.D.) of the sprocket that fits onto this journal gives him the finished measurement he
will machine the shaft to.
